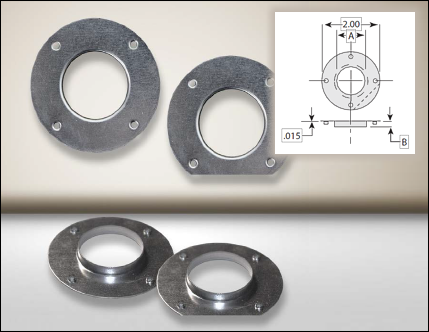

2" Tinplate Inserts / Bushings - A & M Series
PART NO. CENTER HOLE DIAMETER - A HUB HEIGHT - B WEIGHT PER 1,000 pcs.
A-5 1.006 - 1.009 .055 - .062 12.5 lbs.
A-6 1.006 - 1.009 .080 - .092 12.5 lbs.
A-7 1.006 - 1.009 .115 - .124 11.7 lbs.
A-8 1.006 - 1.009 .146 - .156 11.7 lbs.
A-9 1.006 - 1.009 .176 - .186 11.7 lbs.
A-16 1.006 - 1.009 .080 - .092 11.6 lbs.
A-17 1.006 - 1.009 .115 - .124 11.2 lbs.
M-1 .792 - .797 .110 - .120 12.5 lbs.
Application:

Used For Depressed Center Wheels, Cut-Off Wheels, Grinding Wheels and Flap Discs

  • Parts are concentric within .010 with < .005 burr
  • Special build-to-order sizes are available on request.
  • Four 1/8" diameter equally spaced rough extruded nail holes on 1.187 bolt circle.
  • (M - 1) Four 1/8" diameter equally spaced rough extruded nail holes on 1.703 bolt circle.
  • (A-16 thru A-17) Flat edge to clear drive hole in parts.
  • All 2 inch A and M Series Inserts are made of .015 thick Soft Temper Steel with Electrolytic Tinplate Finish.
2" Tinplate Inserts / Bushings - A & M Series
