Drilling Machines

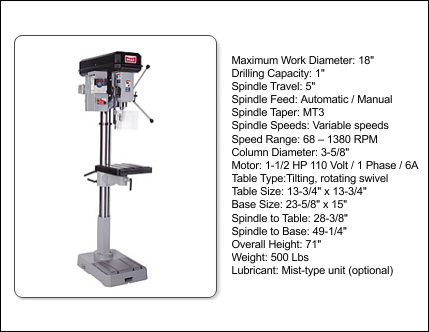

The SB-250V is a Heavy-Duty variable speed floor model drill press. It's depth is adjustable and can be preset for repetitious drilling operations to a predetermined depth. It has conveniently placed controls including an E-Stop button, low voltage protection and a belt cover interlock switch for safety. The SB-250V has an adjustable plexiglas chip/chuck guard and the bit changes quickly with a chuck key.

Application:

Production work and maintenance work in the repair shop or toolroom

  • Large tilting table that can be swiveled or rotated on the column for a variety of drilling operations. Height adjustable table with locking mechanism.
  • Quick release belt tensioning for fast speed changes. Three-pulley system and variator for high torque and multiple speed ranges. Pulleys are drilled for best balance.
  • Automatic gear box with adjustable depth stop, then spring return.
  • Speeds and feeds chart for materials and bit size, for easy reference and optimum operation.
  • Drill press comes complete with chuck, keys, wedges, owners manual and a 1-year Dake warranty. All you do is just add power.
  • MT3 (Morse Taper) accepts most standard size bits or adapters.
  • Large column diameter for added rigidity.
  • Compact size to minimize floor space.
  • Precision ground table and base with Tee slots for clamping and fixturing.
