Zinc Flanges

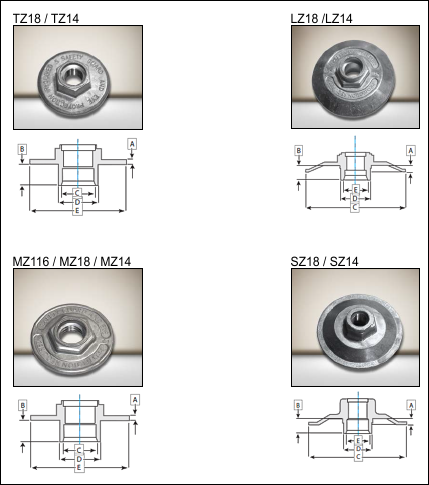

| PART NO. | FITS WHEEL DIA. | HUB DEPTH DIM. A | HUB HEIGHT DIM. B | DIA. DIM. C | HUB O.D. DIM. D | WEIGHT PER 1,000 pcs. |
|---|---|---|---|---|---|---|
| LZ-14 | 4" to 7" x 1/4" | .195 - .200 | .475 - .485 | 2.800 | .868 - .870 | 143 lbs. |
| LZ-18 | 4" to 7" x 1/8" | .195 - .200 | .355 - .365 | 2.800 | .868 - .870 | 137 lbs. |
| MZ-14 | 4" to 6" x 1/4" | .110 - .120 | .455 - .465 | 2.000 | .868 - .870 | 98 lbs. |
| MZ-18 | 4" to 6" x 1/8" | .110 - .120 | .375 - .385 | 2.000 | .868 - .870 | 98 lbs. |
| MZ-116 | 4" to 6" x 1/16'' | .110 - .120 | .265 - .275 | 2.000 | .868 - .870 | 98 lbs. |
| SZ-14 | 7" to 9" x 1/4" | .195 - .200 | .455 - .465 | 3.200 | .868 - .870 | 228 lbs. |
| SZ-18 | 7" to 9" x 1/8" | .195 - .200 | .355 - .365 | 3.200 | .868 - .870 | 221 lbs. |
| TZ-14 | to 4" x 1/4" | .110 - .120 | .455 - .465 | 1.375 | .614 - .618 | 52 lbs. |
| TZ-18 | to 4" x 1/8" | .110 - .120 | .375 - .385 | 1.375 | .614 - .618 | 52 lbs. |
Application:
For Depressed Center Wheels and Flap Discs
- All sizes (except TZ with 3/8-24 and 10mm) include 5/8-11 Class 2B threads (other sizes available) and fit type 27 and 28 depressed center wheels.
- Made of Die Cast Zinc and free from oil and other contaminants.
- Shakespeares' Zinc Flanges are also known as Hubs.
- Concentric within .010 with ,.005 burr
Supplying Quality Components used in the Manufacture of Abrasive Wheels.
