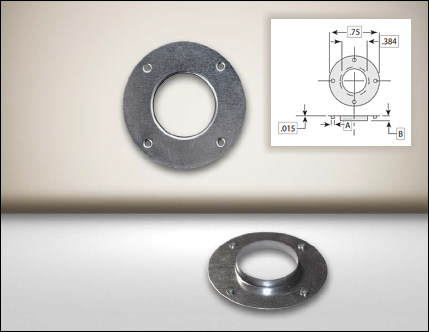

3/4" Tinplate Inserts / Bushings
| PART NO. | CENTER HOLE DIAMETER | EXTRUDE HOLES DIAMETER - A | HUB HEIGHT - B | WEIGHT PER 1,000 pcs. |
|---|---|---|---|---|
| H-1 | .384 - .386 | 0.031 | .058 - .062 | 3.3 lbs. |
| H-2 | .384 - .386 | 0.053 | .120 - .125 | 3.7 lbs. |
| H-3 | .384 - .386 | 0.090 | .170 - .187 | 4.25 lbs. |
| H-4 | .384 - .386 | 0.090 | .230 - .250 | 4.9 lbs. |
Application:
Used for Hat Wheels
- All 3/4" H Series inserts are made of .0150 thick Soft Temper Steel with Electrolytic Tinplate Finish.
- Parts are Concentric within .010 with < .005 burr.
- Special build-to-order sizes are available on request.
Supplying Quality Components used in the Manufacture of Abrasive Wheels.
